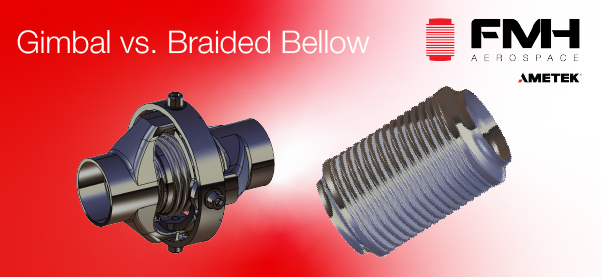

The precise conveyance of motion and forces holds utmost importance within intricate engineering world, especially in the aerospace industry. Design flexibility often calls for specialized components, and two such contenders are gimbal (ball joints) and flexible/braided bellows. In this article, we explore the benefits of these flex joints, delving into the strengths of gimbal joints and the versatility of flexible or braided bellows.
The Power of Gimbal Joints
Gimbal joints, often called ball joints, are a mechanical marvel. They consist of a spherical ball enclosed within a socket, allowing for multi-axis rotation and angular movement. This design provides several distinct advantages:
- Exceptional range of motion: Gimbal joints can rotate in multiple directions, enabling unparalleled freedom of movement. This makes them ideal for applications requiring complex motion patterns, such weapons systems and aircraft, where precise adjustments are critical.
- Mechanical stability: Despite their wide range of motion, gimbal joints provide mechanical stability due to their design. This stability is invaluable in systems where controlled movement needs to be balanced with structural integrity.
- Reduced stress concentration: Gimbal joints effectively distribute forces, minimizing stress concentration at connection points. This makes them suitable for load-bearing applications, preventing premature wear and tear.
Versatility of Flexible/Braided Bellows
Flexible or braided bellows offer a unique set of advantages in systems that require the absorption of vibrations, expansion due to temperature variations, and protection against environmental elements:
- Compensation for thermal expansion: Bellows are adept at accommodating thermal expansion and contraction. Their accordion-like design allows them to extend and contract as temperatures change, preventing undue stress on interconnected components.
- Vibration dampening: In mechanical systems that generate vibrations, such as engines or critical flight, flexible bellows act as buffers, absorbing and dampening vibrations. This feature enhances equipment lifespan and contributes to a quieter and more stable operation.
- Sealing against contaminants: Flexible bellows can be sealed to protect sensitive components from contaminants like dust, moisture, and chemicals. This shielding effect is invaluable in environments where precision is paramount, such as space missions.
Choosing the Right Solution
Selecting between gimbal joints and flexible/braided bellows depends on the specific needs of the application:
Gimbal joints: Gimbal joints excel if the application requires complex, multi-axis rotational movement where precise and controlled movement is essential. Rocket engine nozzles, aircraft control surfaces, and aircraft weapon systems are prime examples.
Flexible/braided bellows: For applications involving thermal expansion, vibration absorption, and environmental protection, bellows prove their mettle. Their adaptability benefits aircraft exhaust systems, in-flight refueling systems, and even thermal protection systems.
In conclusion, the choice between gimbal joints and flexible/braided bellows ultimately rests on the system's specific requirements. While gimbal joints offer incredible freedom of movement and mechanical stability, flexible bellows provide versatility in compensating for thermal expansion, dampening vibrations, and maintaining environmental integrity. Each type of flex joint has its place, contributing to the intricate dance of engineering that powers our technological world.
